Improve Neural Networks by using Complex Numbers
Improve Neural Networks by using Complex Numbers
Can Complex Functions be the next breakthrough in Computer Vision?
Recently, someone in my LinkedIn network shared this very interesting paper with me. Titled, “CoShNet: A Hybrid Complex Valued Neural Network using Shearlets”, this paper proposes the use of complex functions in a hybrid neural network. If you are very confused by those words, don’t worry I was too. In this article, I will explain the idea of hybrid neural networks and how they can be used to improve traditional Convolutional Neural Networks. Then we will cover how using Complex Functions can be used to boost the performance of these models even further. This is going to be a very fun one.
The resulting network is called Complex Shearlets Network (CoShNet). It was tested on Fashion-MNIST against ResNet-50 and Resnet-18, obtaining 92.2% versus 90.7% and 91.8% respectively. The proposed network has 49.9k parameters versus ResNet-18 with 11.18m and use 52 times fewer FLOPs. Finally, we trained in under 20 epochs versus 200 epochs required by ResNet and do not need any hyperparameter tuning nor regularization.
-In case you’re looking for a reason to be excited about the this idea.
Understanding Convolutional Neural Networks
Convolutional Neural Networks have been the OG Computer Vision Architecture since their inception. In fact, the foundations of CNNs are older than I am. CNNs were literally built for vision.

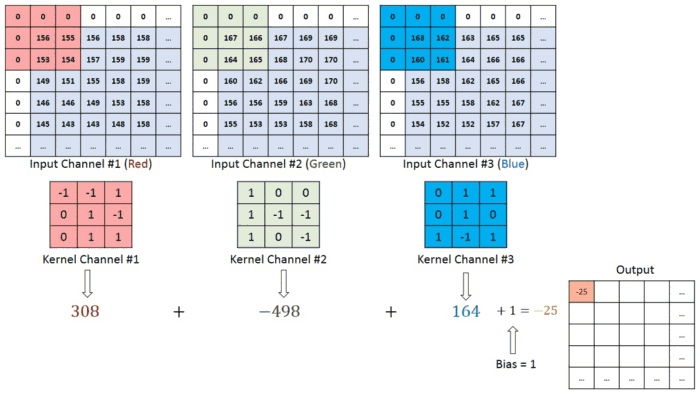

So what’s so good about CNNs? The main idea behind Convolutional Neural Nets is that they go through the image, segment by segment, and extract the main features from it. The earlier layers of the CNN often extract the more crude features, such as edges and colors. However, adding more layers allows for feature extraction at a very high resolution of detail.
This article goes into CNNs in more detail. For our purposes one thing is important: CNNs have been the go-to for Computer Vision primarily due to their ability to build feature maps. Even with the rise of Vision Transformers, CNNs have held strong (provided you modernize the pipeline using the techniques here).
So far, so good. So what’s the catch? There is one problem with their approach. The convolutions (building feature maps) can get really expensive.
Enter Hybrid Neural Networks

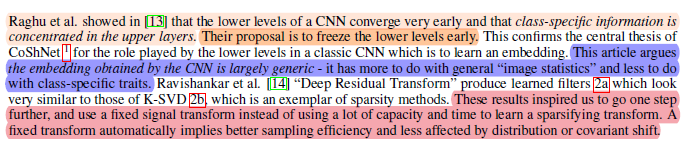

If you’ve studied even a bit of Computer Science (which you should do be effective at ML), you will realize something about the Feature Mapping process. It is really expensive. You have to slide the window across multiple times. As we’ve already stated, the earlier layers only extract the crude features. The high-resolution features are only spotted at the later levels. This is where some really smart people saw an opportunity. What if we did some Math to find a function that can help us spot some low-level features directly? This way we can spot the features without going through the expensive early convolutions-
In a hybrid neural network, the expensive convolutional layers are replaced by a non-trainable fixed transform with a great reduction in parameters.
If you could find a good function, then you’ve significantly reduced your computational overhead. And we have some great functions that can do this. Turns out Complex Functions just work better. Look at the image below and the difference in results.
This image is the perfect segue into the next section. Let’s now talk about all the advantages that Complex Functions bring to our Neural Networks, and why they work so well in the first place. Some of this can get pretty mathematical, but if you feel that way, make sure you close your eyes and think about what the Deep Learning bros on Twitter tell you about not needing Math for Machine Learning. True Machine Learning is about overfitting big models to neat data, and not this technical mathy stuff (that involves a lot of experimentation).
So let’s get into Complex Functions in Hybrid Networks (and specifically the Complex Shearlets function).
The amazing CoSh Network

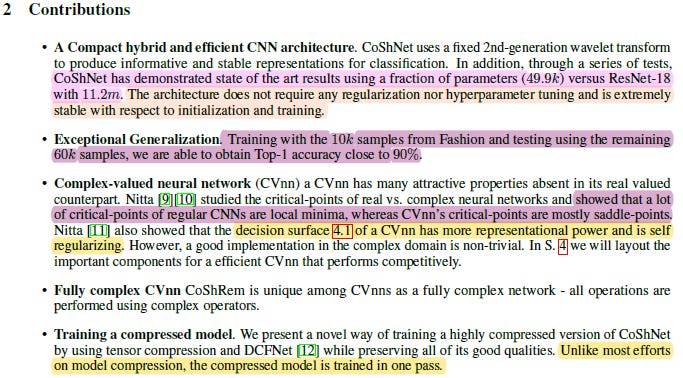

Before I get into the details, here is a concise look at some of the amazing things this network can accomplish. This should tell you why I’m covering this idea (and hopefully illustrate why I spend my weekend reading random ML papers).
You already know I’m very excited about these results. A cost-effective ML solution built using Math? One that generalizes very well? I’m getting excited just typing this. However, one thing that really stood out to me was this network's resilience to noise and perturbation. This is something that I’ve been covering since I started writing and these results are very exciting as a way to counter that.
Take a look at this graph where they tested the network with permutations of clean and perturbed datasets. The results are shockingly stable, especially considering the relatively small training dataset size. I normally expect this robustness from bigger datasets.
Fanboying out of the way, why does this happen? What is the reason that this can work so well? Is this a fluke, or is there something about Complex Function that works very well?
Let’s move on to why Complex Functions might be the next leap in Deep Learning.

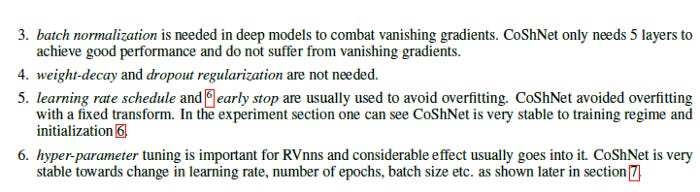

This is in stark contrast to a recent paper [41] “.. the necessity to optimize jointly the architecture and the training procedure: ..having the same training procedure is not sufficient for comparing the merits of different architectures.” Which is the opposite of what one wants to have — a no-fuss, reliable training procedure for different datasets and models.
— The authors show that tuning and expensive search is not the only way.
The Magical Properties of Complex Functions

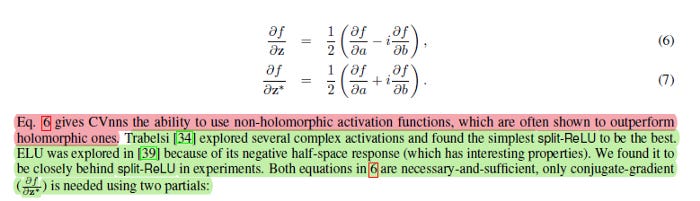

There are some very interesting properties that make Complex Neural Networks special. First, let’s talk about the decision boundaries. Complex Neurons create the following boundaries-
Nothing surprising here. However, this brings up some interesting properties, especially with generalization. According to the authors-
The decision boundary of a CVnn consists of two hypersurfaces that intersect orthogonally (Fig. 7) and divides a decision region into four equal sections. Furthermore, the decision boundary of a 3-layer CVnn stays almost orthogonal [27]. This orthogonality improves generalization. As an example, several problems (e.g. Xor) that cannot be solved with a single real neuron, can be solved with a single complex-valued neuron using the orthogonal property

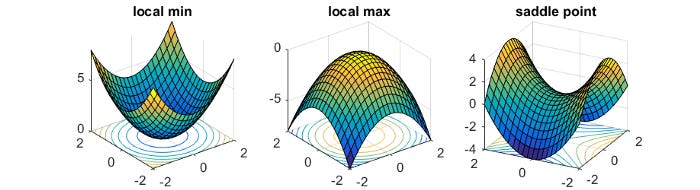

The next stand-out to me is the presence of Saddle-Points. Saddle points occur in multivariable functions. They are critical points where the function attains neither a local maximum value nor a local minimum value.
Why does this matter? At saddle points, the derivatives of loss functions are still equal to 0. However, as the authors state, “SGD with random inits can largely avoid saddle points [29] [30], but not a local minimum.” This behavior is probably what allows for much faster convergence since the algorithms won’t get stuck in local minima. Such an approach provides very similar benefits to the integration of Random Restarts to sample a larger search space. The authors even mention that this CoShNet doesn’t need data augmentation to reach Stable Embeddings (with respect to perturbation).
Both of these properties act in the same direction- they allow the network to achieve more with much less.
There is one final property that deserves its own section. Time to get into Phase Congruency and how it helps in adversarial robustness.
Phase Congruency

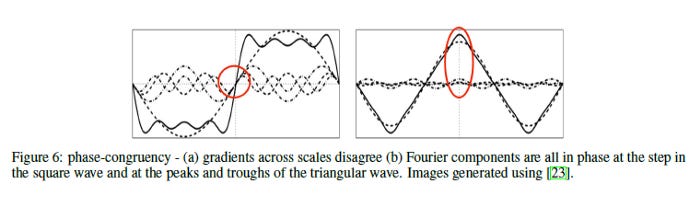

In electronic signaling, phase is a definition of the position of a point in time (instant) on a waveform cycle. Phase can also be an expression of relative displacement between or among waves having the same frequency (source). This video provides a visual representation. Phases are very important in signal processing.

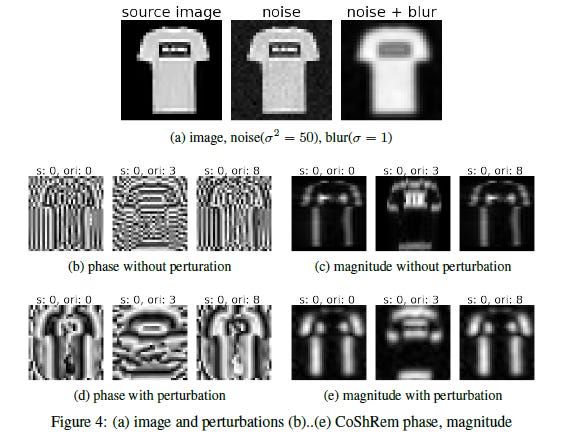

If the Phase can stay stable after perturbation, then we can extract stable features. This aligns well with the analysis MIT paper I shared earlier on why perturbation happens. “CoShRem can extract stable features — edges, ridges and blobs — that are contrast invariant. In Fig 6.b we can see a stable and robust (immune to noise and contrast variations) localization of critical features in an image by using agreement of phase.”
When it comes to detecting features (and their magnitudes) in images where perturbation applies, this works very well.
This phase congruency works wonders in creating models that are robust. I would be interested in seeing how this performance stacks up against more specialized adversarial networks (like the One Pixel Attack). That would be a true test of robustness.
I would like to talk more about this, but a lot of this is related to signal processing. And I know nothing about that. I know enough Math to look through and understand the major ideas/derivations but I’m not fully confident I understand some of the details about phase and complex wavelets. If you have any experiences/resources on this topic leave them in the comments. I’d love to learn from you.
I’ll be looking more into complex functions and analysis after this paper, because it seems extremely powerful. Expect a follow-up with more details/ideas on how complex functions might be usable in networks. If you have any questions/clarifications, you can reach out to Manny Ko. He is a Principal Engineer at Apple and one of the authors of this paper. He shared this write-up with me, and definitely knows more than me about this subject.
